PRODUCT DETAILS
Product Introduction




Product Parameters



1.9 inch 170*320 ST7789 MCU SPI TFT LCD Module Screen 1.9inch 30Pin IPS Vertical LCD Display Factory Customize Touch Panel PCAP

Model No.
TT190RAN14A
Size
1.9 inch
Resolution
170*320
Driver IC
ST7789
Viewing Angle
IPS Full Viewing Angle
Interface
MCU,SPI
Luminance
350cd/m2
LCM Dimension
25.80(W)*49.72(H)*1.43(T)mm
Active Area
22.695(W)*42.72(H)mm

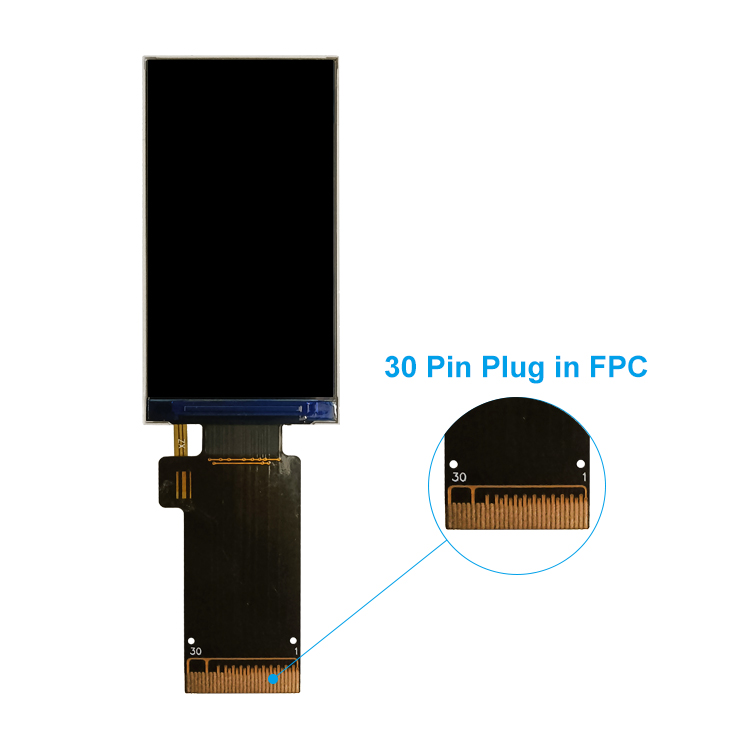

FPC Connecting Mode
30 Pin Plug in FPC
Touch Panel
Without Touch,Touch Panel Optional,Support Customization
Testing Board
Optional
Datasheet & Initial Code
Please contact service

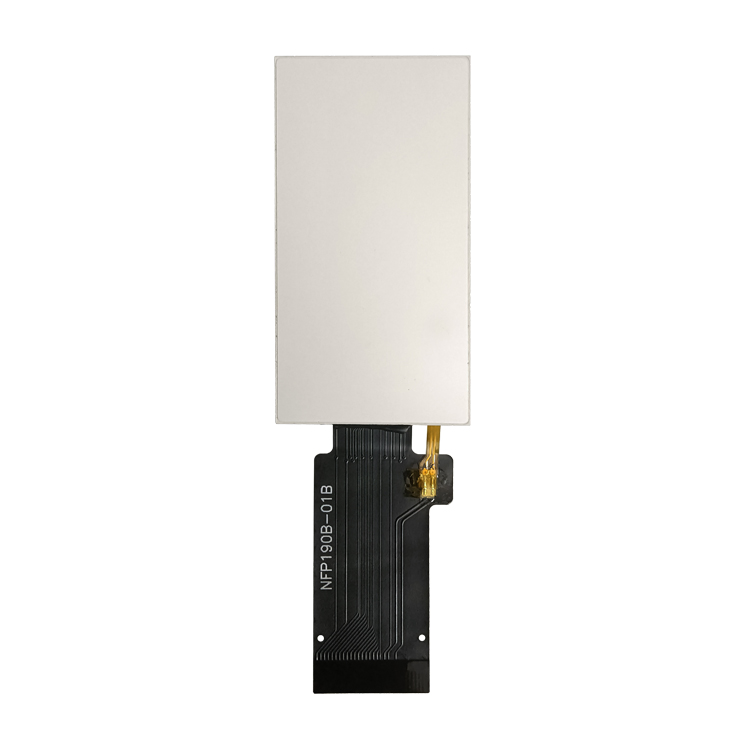

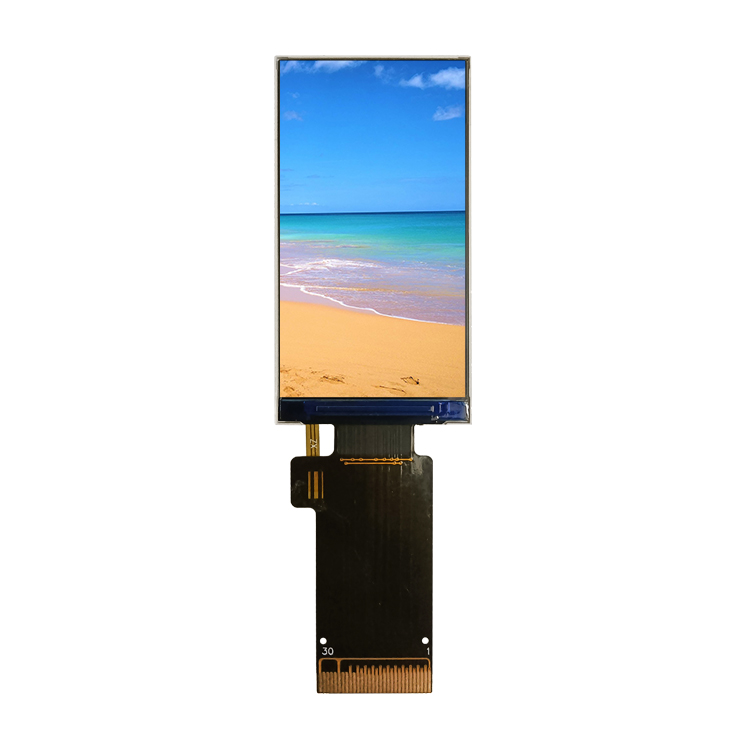

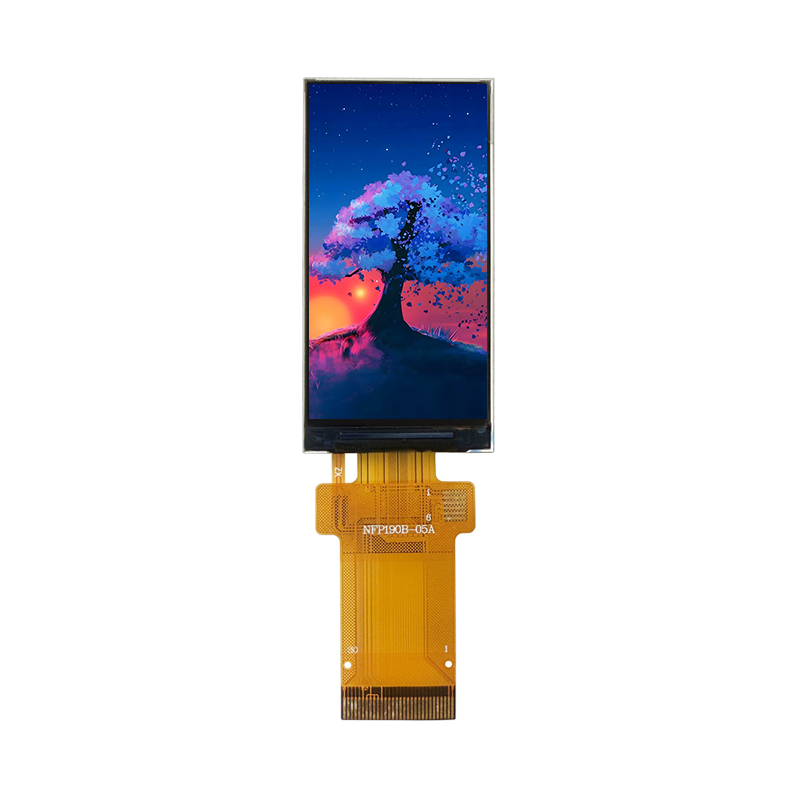

Product Pictures

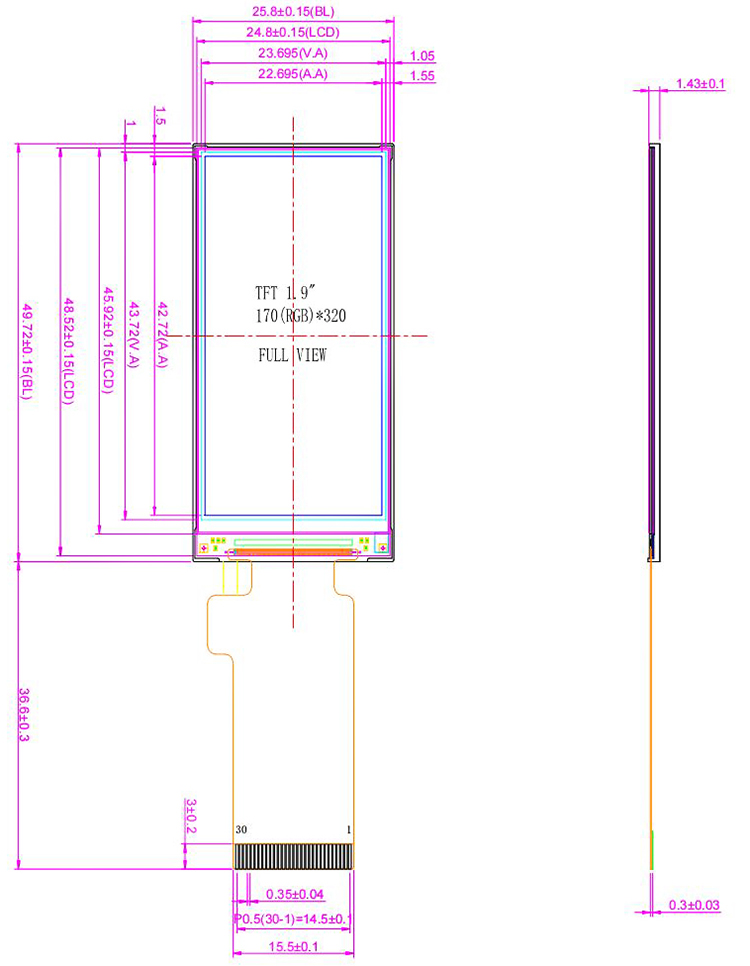

Drawing

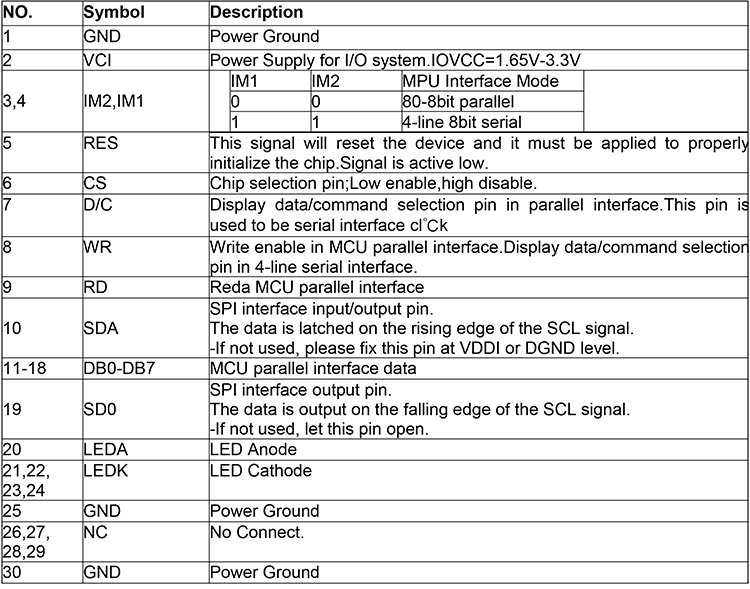

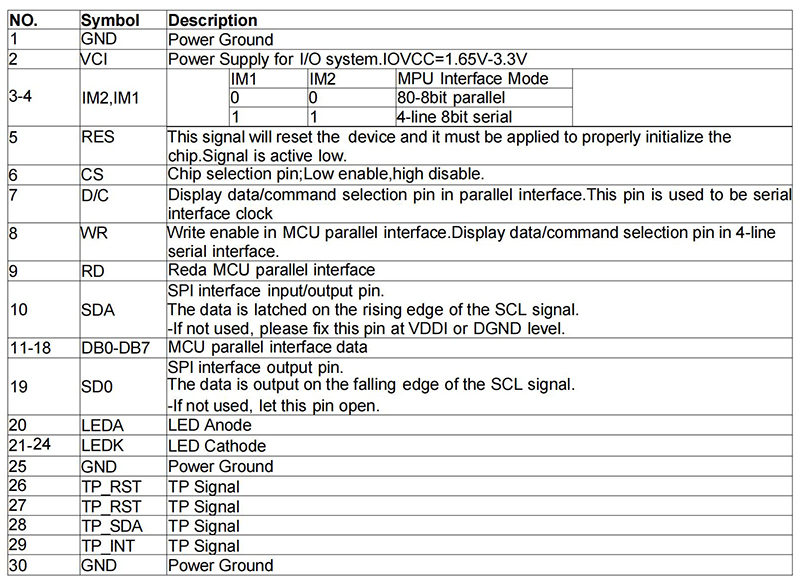

Pin Description





Customization







Product Parameters



1.9 inch 170*320 ST7789 MCU SPI TFT LCD Module Screen 1.9inch 30Pin IPS Vertical LCD Display Factory Customize Touch Panel PCAP

Model No.
TT190RAN14A
Size
1.9 inch
Resolution
170*320
Driver IC
ST7789
Viewing Angle
IPS Full Viewing Angle
Interface
MCU,SPI
Luminance
350cd/m2
LCM Dimension
25.80(W)*49.72(H)*1.43(T)mm
Active Area
22.695(W)*42.72(H)mm
FPC Connecting Mode
30 Pin Plug in FPC
Touch Panel
Without Touch,Touch Panel Optional,Support Customization
Testing Board
Optional
Datasheet & Initial Code
Please contact service

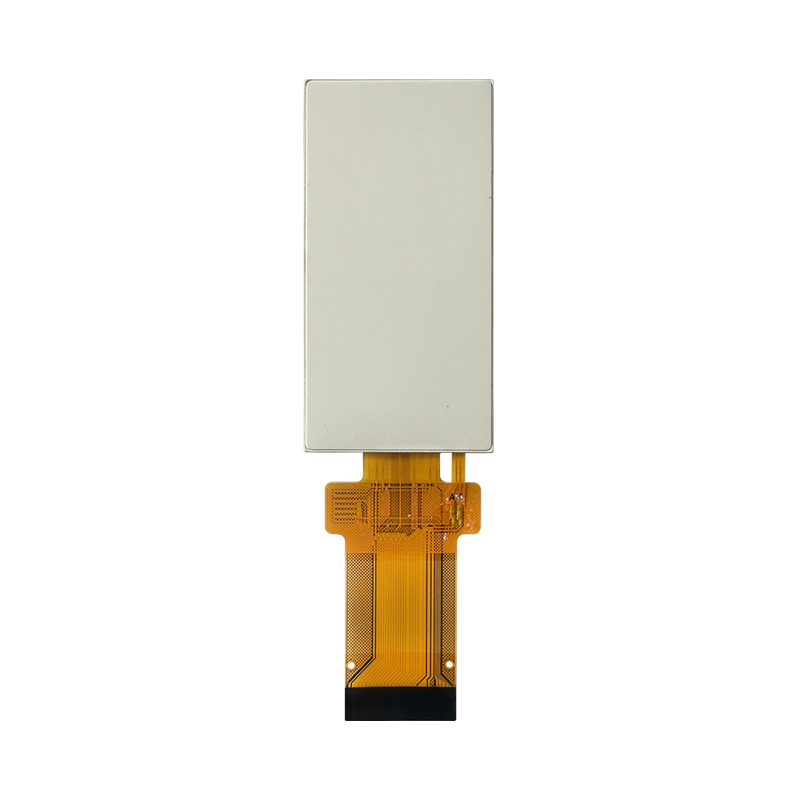

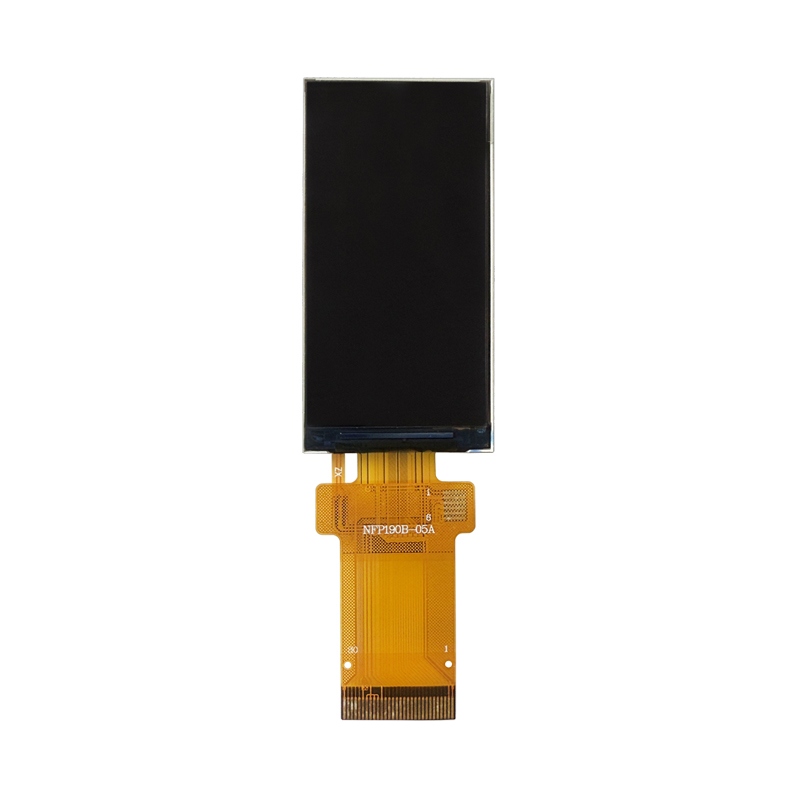

Product Pictures

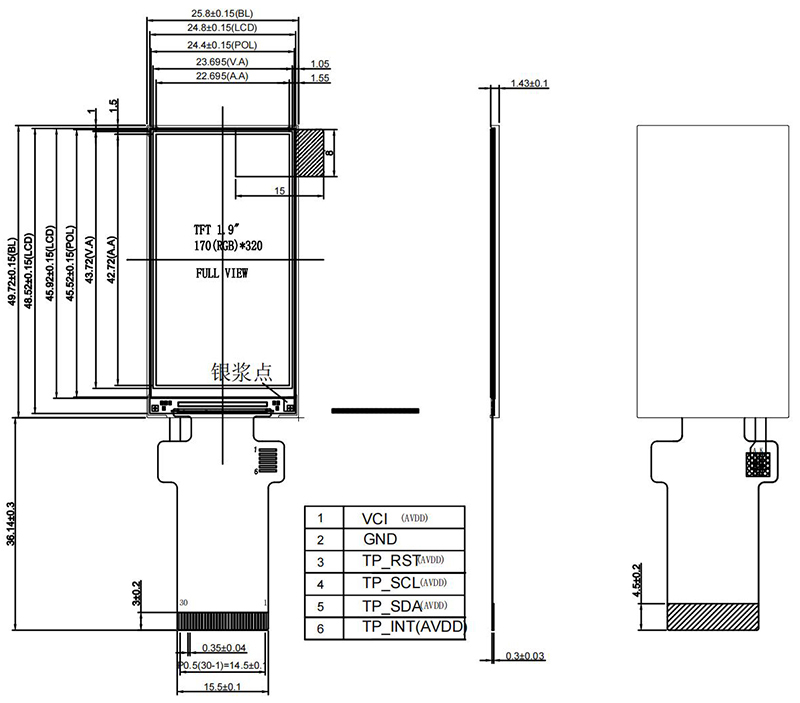

Drawing




Pin Description





Customization
