Product Parameters
4.2 Inch 300*400 SPI Mono Reflective TFT LCD FOG Screen 4.2inch 4:3 21Pin ST7305 Outdoor LCD Module Display Custom Touch Panel
| Display Type | Mono Reflective LCD Display |
| Model No. | TT420FSN21A |
| Display Size | 4.2 inch |
| Resolution | 300*400 |
| Driver IC | ST7305 |
| Interface | 4-SPI |
| Viewing Angle | IPS |
| Outline Dimension | 67.6*91.0*0.8mm |
| Active Area | 63.6*84.8mm |
| FPC Connector | 21 Pin Plug in FPC |
| Touch Panel | Without touch,support customization |
| Testing Board | Optional |
| Front LED | Without front LED,support customization |
| Datasheet & Initial Code | Please contact service |
| Customization | Support |

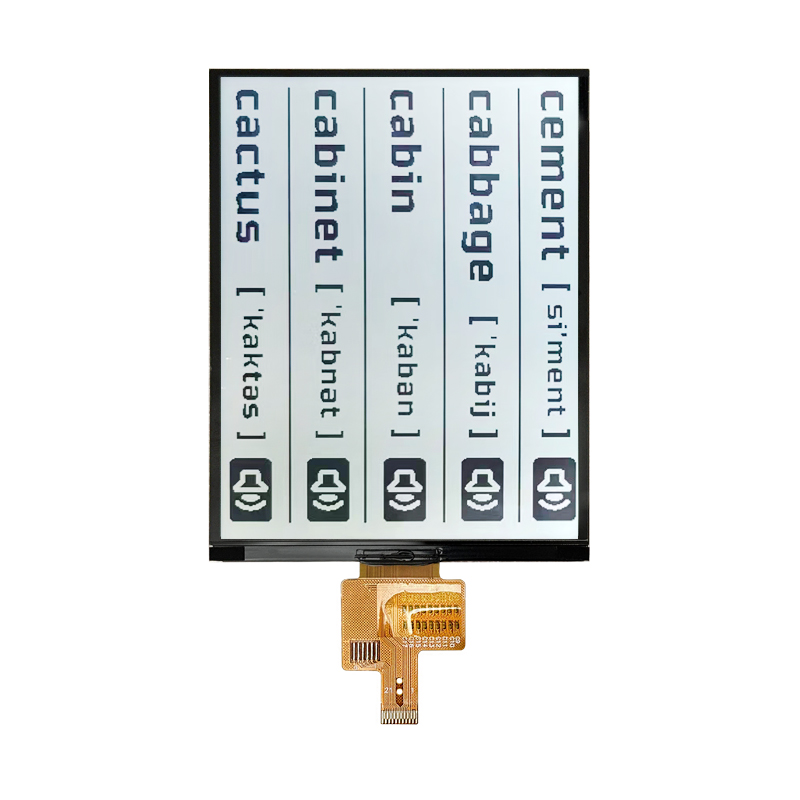

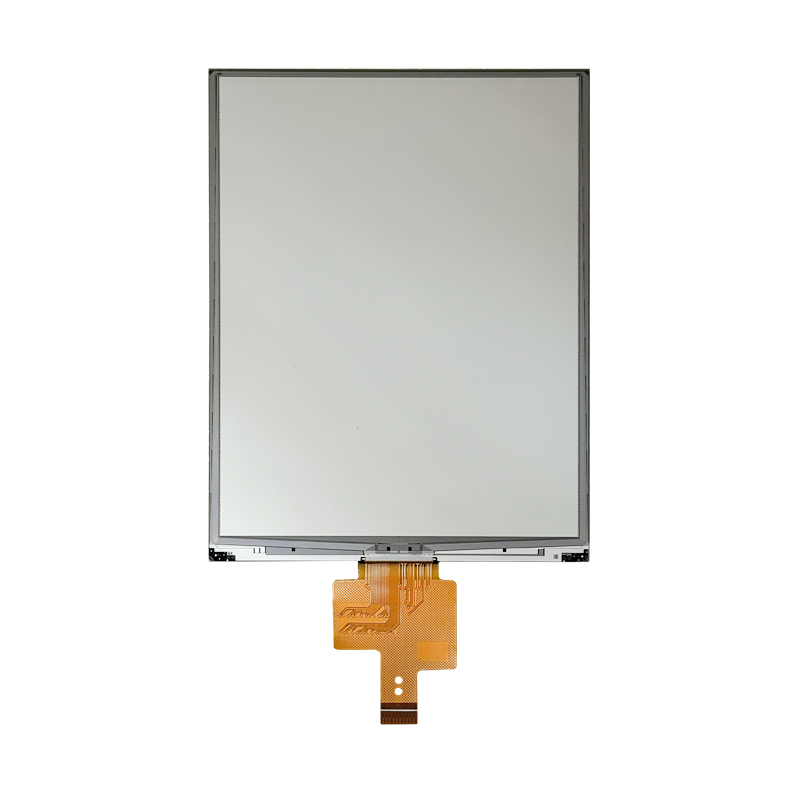

Product Pictures

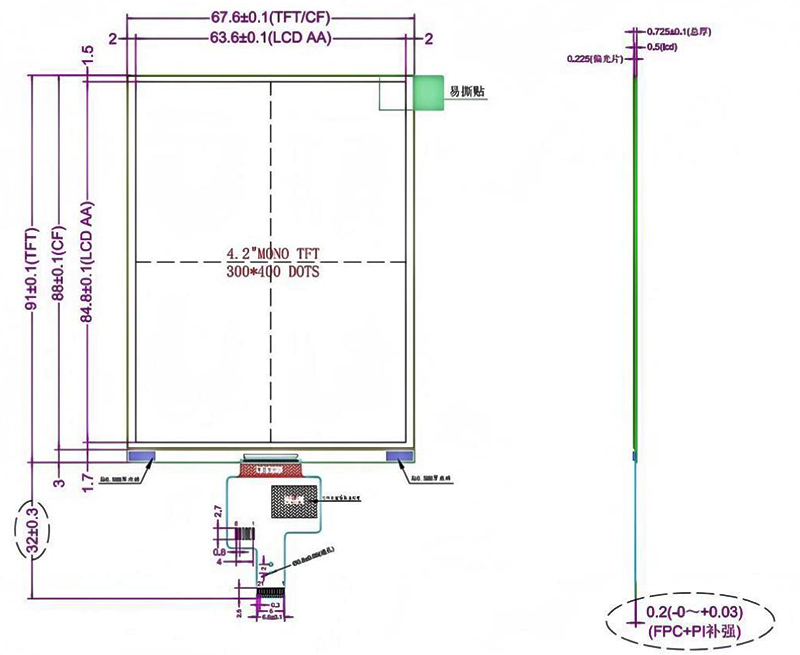

Drawing

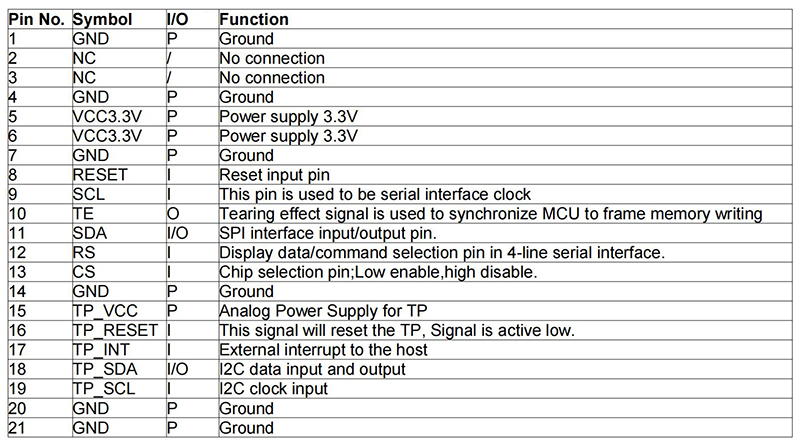

Pin Description
Customization
