Product Parameters
7 Inch 800*1280 Vertical MIPI TFT LCD Display Module with Capacitive Touch Panel 7inch 31Pin ILI9881C LCD Screen TFT Touchscreen
| Display Type | TFT LCD Display |
| Model No. | TT700RAC24B |
| Display Size | 7.0 inch |
| Resolution | 800*1280 |
| Driver IC | ILI9881C+GT1151Q |
| Interface | MIPI 4 Lanes |
| Viewing Angle | IPS Full Viewing Angle |
| Luminance | 300~360cd/m2 |
| Outline Dimension | Display: 99.80*161.0*2.6mm With CTP: 173.53*113.8*4.375mm |
| Active Area | 94.2*150.72mm |
| FPC Connecting Method | 31Pin Plug in Connector/6Pin Plug in FPC |
| Touch Panel | With capacitive touch panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | FPC(Shape,Pin Definition,Connector,EMI Film) Backlight(Dimension,Using Life,LED Color,Luminance) Touch Panel(Shape,Dimension,FPC,Touch Points) |

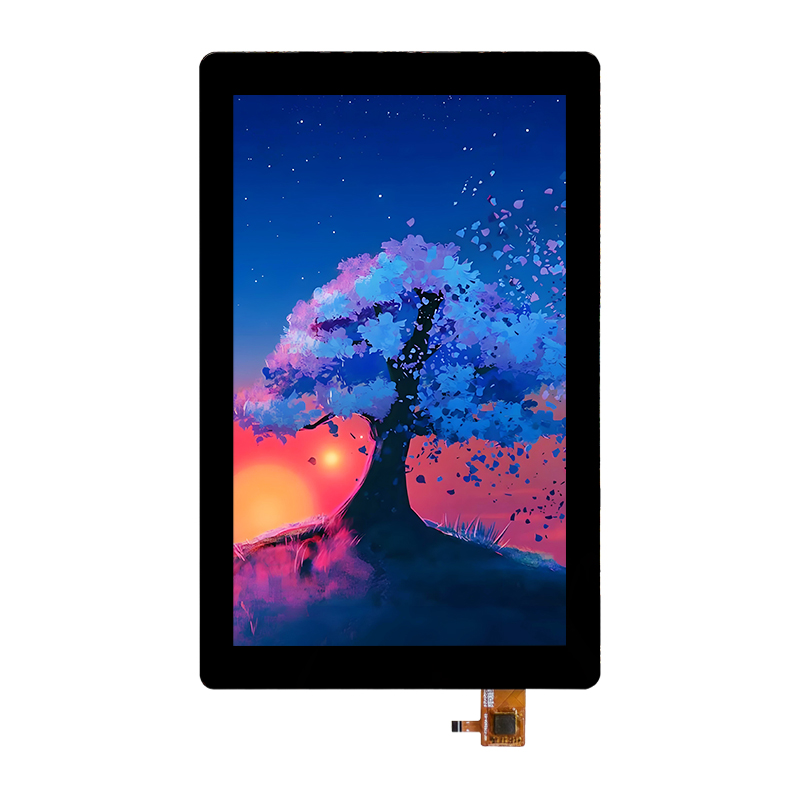

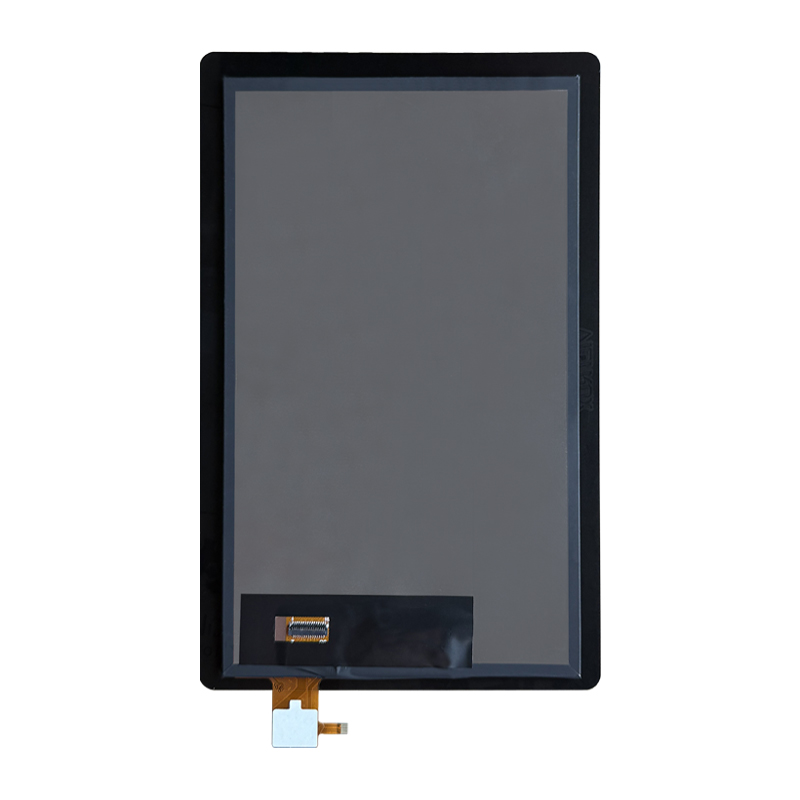

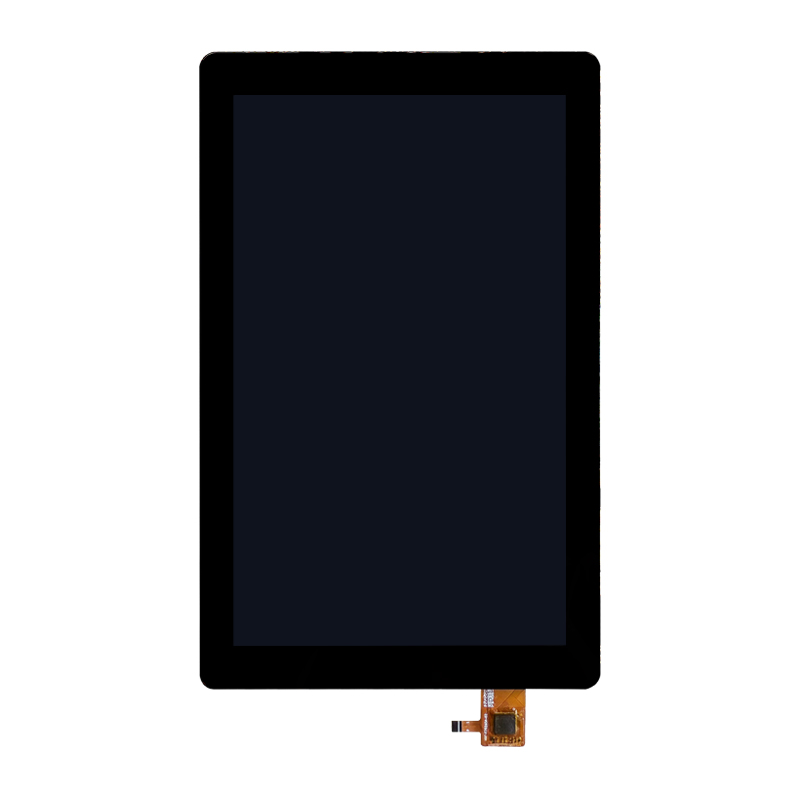

Product Pictures

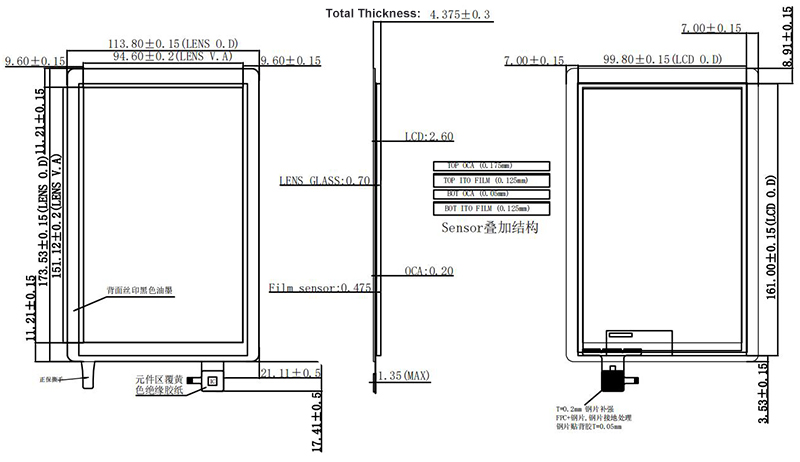

Drawing

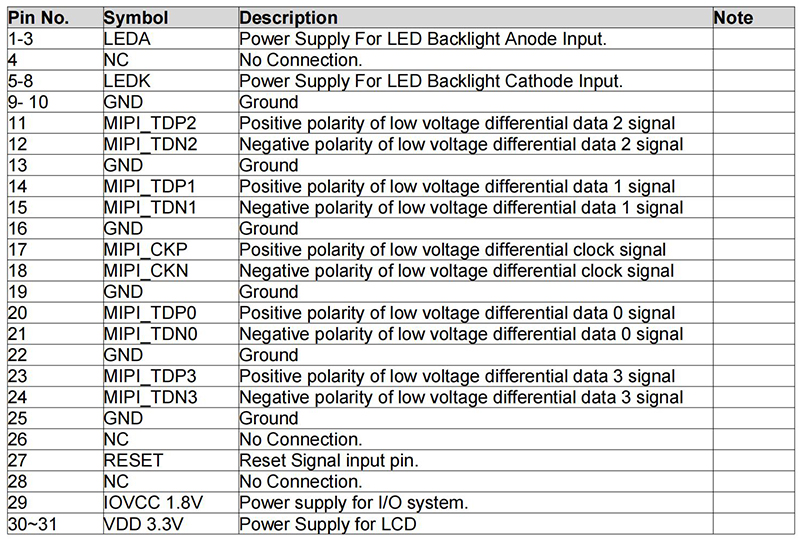

Pin Description
Customization
