Product Parameters
2.4 Inch 450*600 SPI MCU MIPI QSPI 850Nits AMOLED Display Module with Oncell Touch 2.4inch 51Pin Color OLED Touch Screen Panel
| Display Type | AMOLED Display |
| Model No. | TT240AMC02B |
| Display Size | 2.4 inch |
| Resolution | 450*600 |
| Interface | SPI/QSPI/MCU/MIPI |
| Viewing Angle | IPS full viewing angle |
| Driver IC | ICNA3312/GTW623 |
| Luminance | 800cd/m2 |
| Outline Dimension | 38.6784*51.56*0.5mm |
| Active Area | 36.72*48.96mm |
| FPC Connecting Method | 51 Pin plug in FPC |
| Touch Panel | With oncell touch,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |

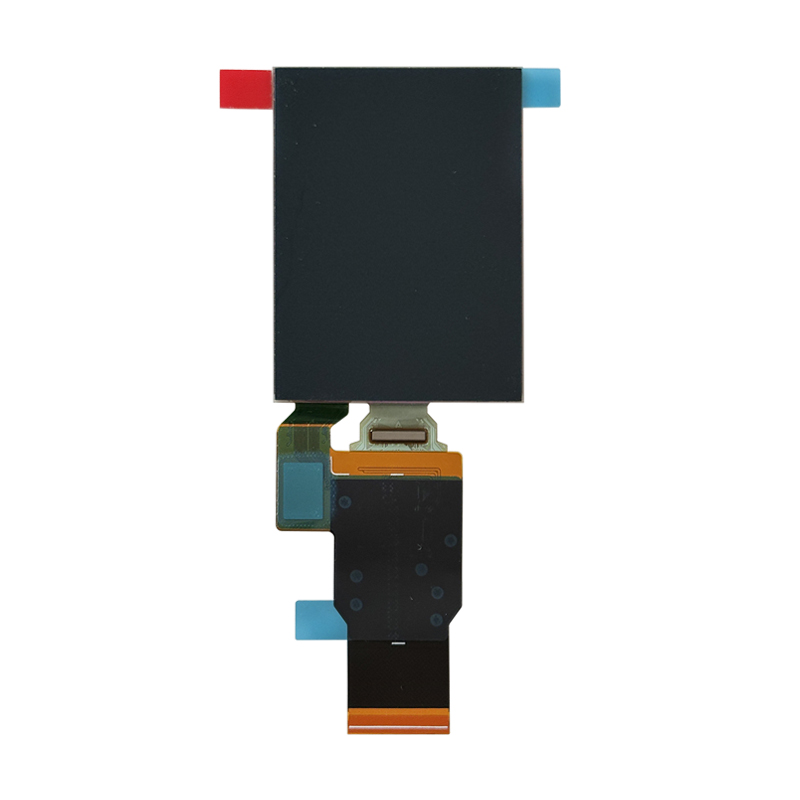

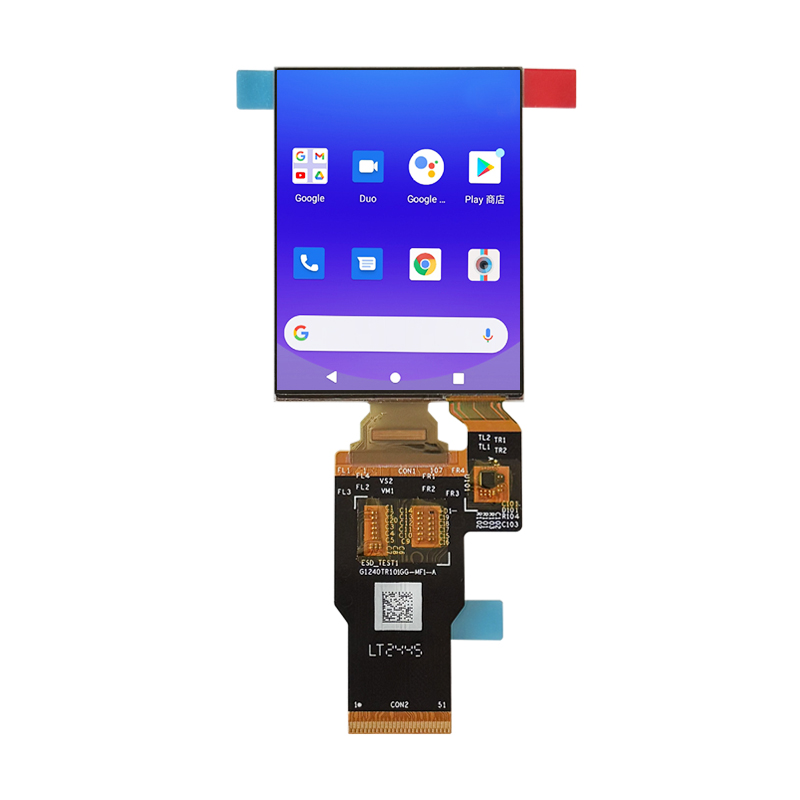

Product Pictures

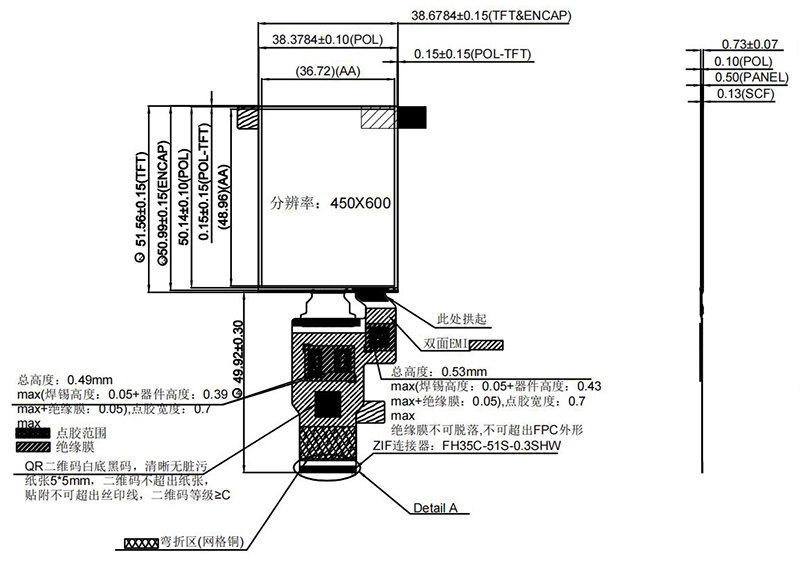

Drawing

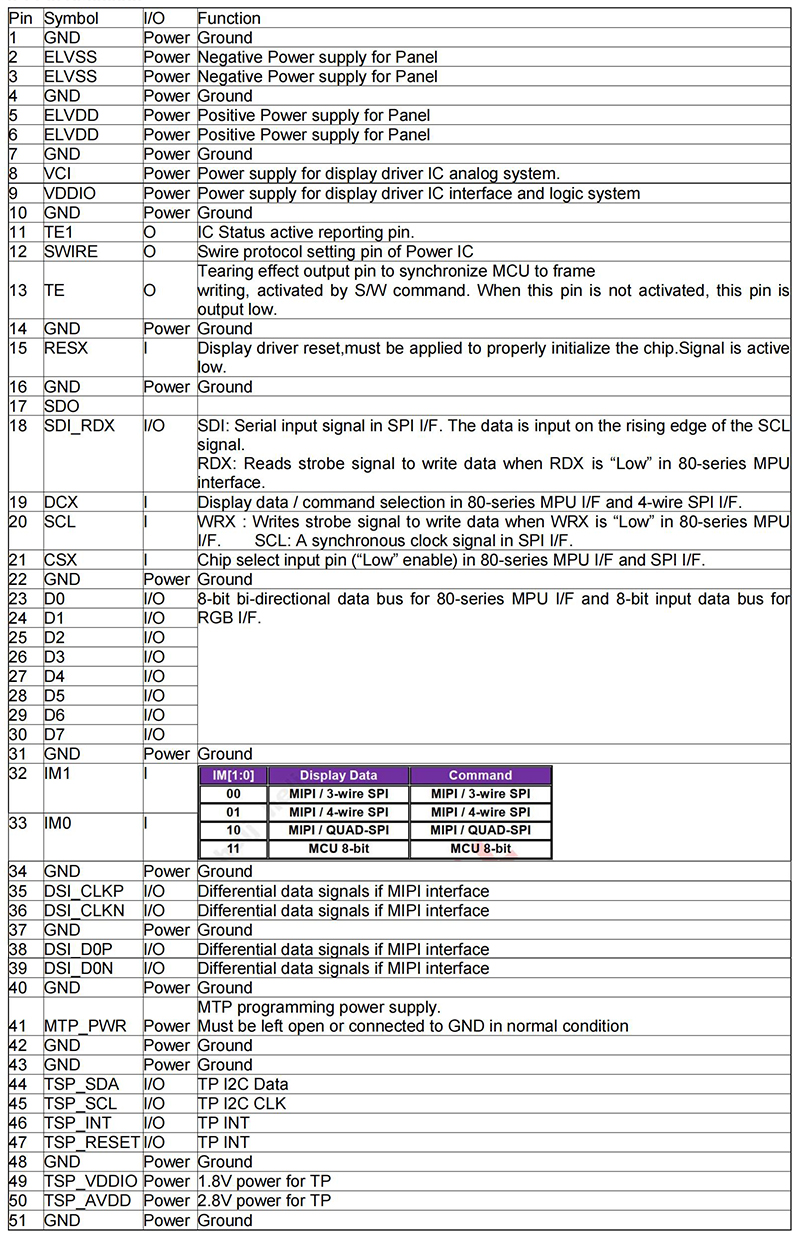

Pin Description
Customization
