Product Parameters
4.39 Inch 568*1210 MIPI DSI Bar Type AMOLED Display with Oncell Touch Screen 4.39inch 39Pin OLED LCD Module Panel Touchscreen
| Display Type | AMOLED Display |
| Model No. | TT439AMC02B |
| Display Size | 4.39 inch |
| Resolution | 568*1210 |
| Interface | MIPI DSI |
| Viewing Angle | IPS full viewing angle |
| Driver IC | SD5207+CST3530 |
| Luminance | 600cd/m2 |
| Outline Dimension | 49.13*103.55*0.75mm |
| Active Area | 47.3712*100.914 mm |

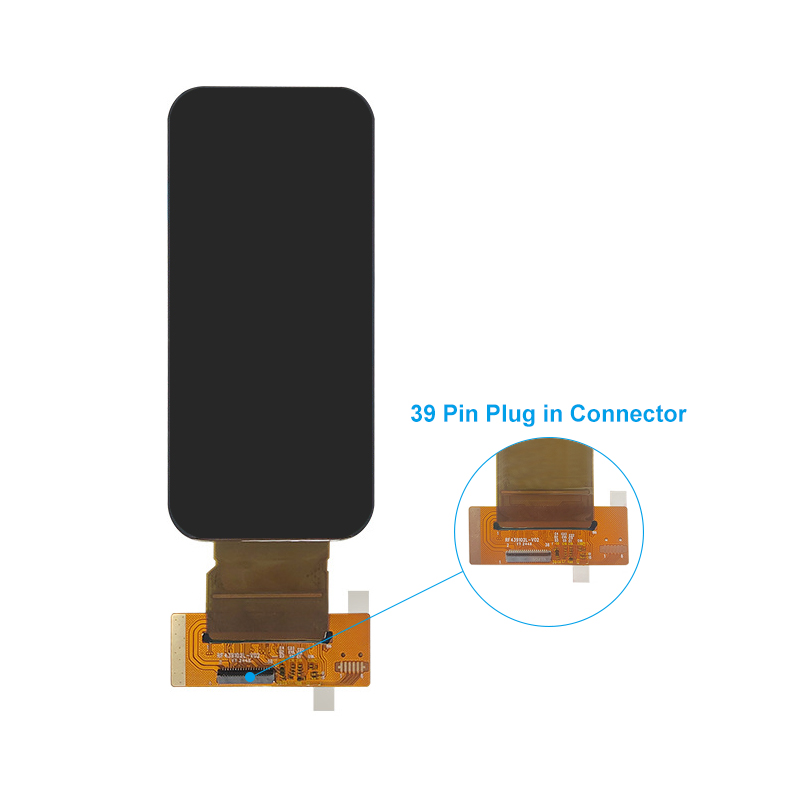

| FPC Connecting Method | 39 Pin plug in FPC |
| Touch Panel | With oncell touch,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |

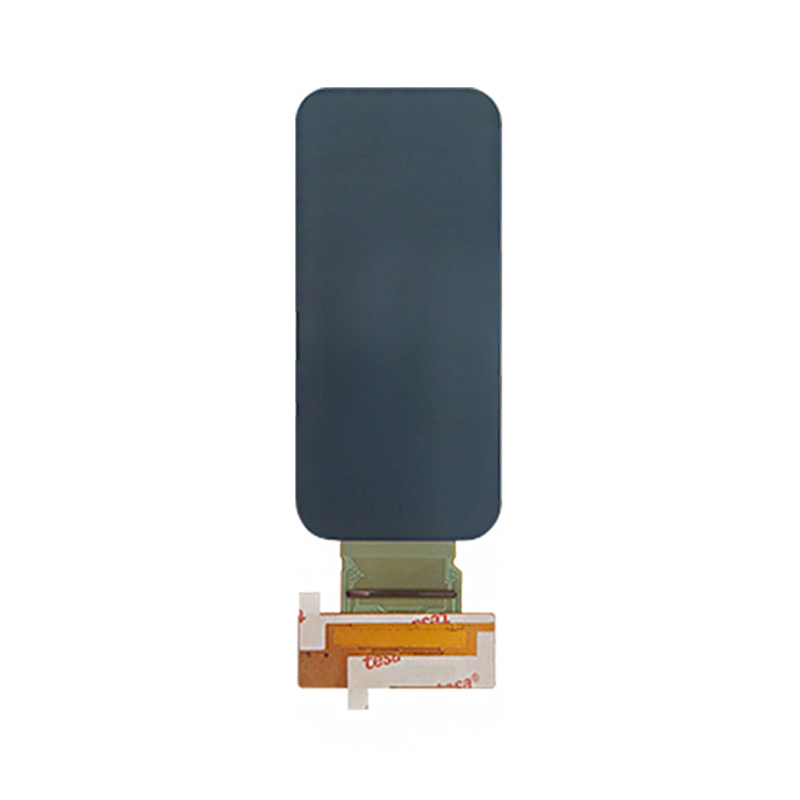

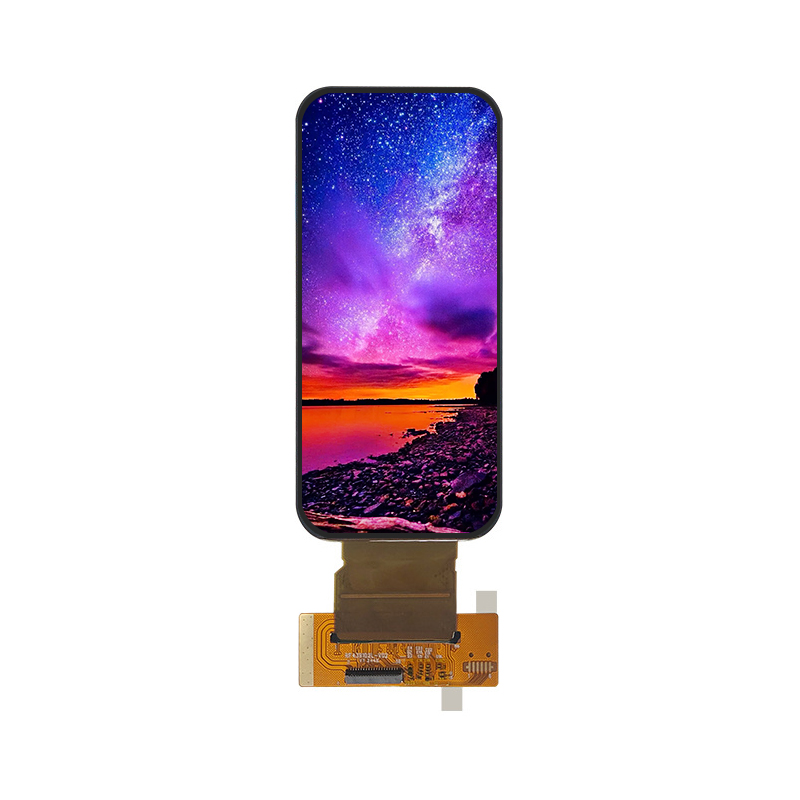

Product Pictures

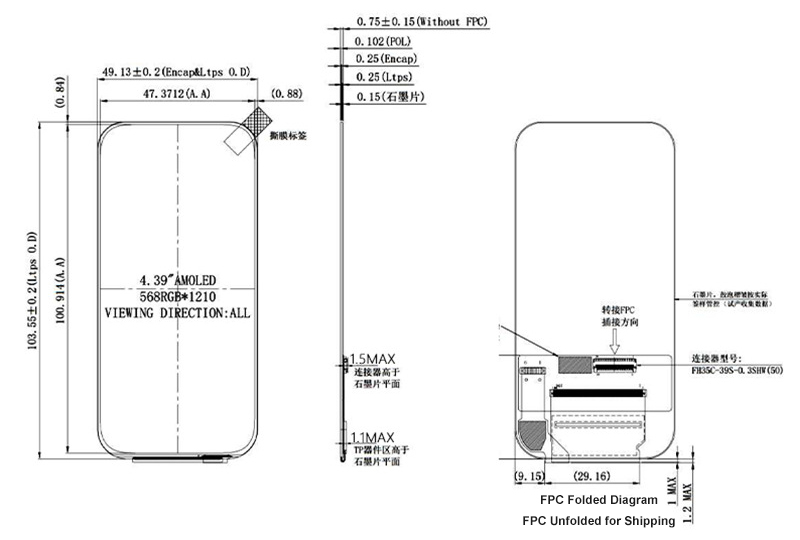

Drawing

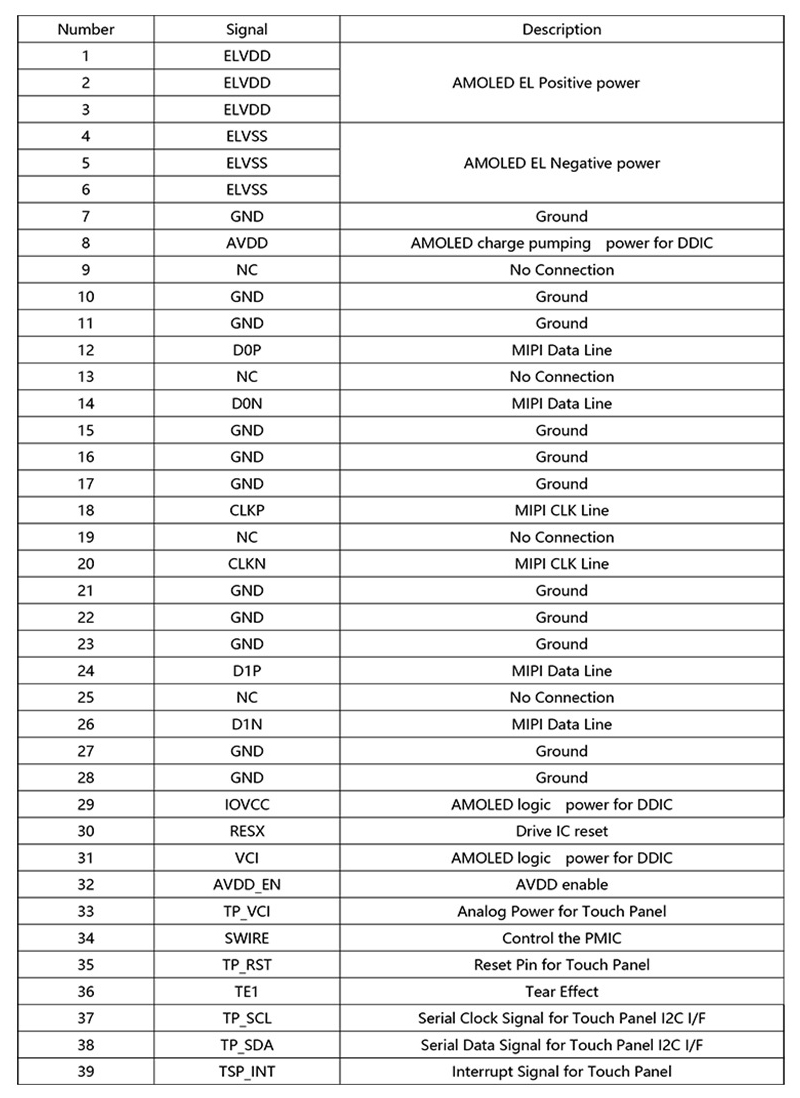

Pin Description
Customization
