Product Parameters
1.78 inch 368*448 MIPI Small Square AMOLED Display with Oncell Touch 2.5D Cover Panel 1.8inch 24Pin Color OLED Screen LCD Module
| Display Type | AMOLED Display |
| Model No. | TT178AMC49C |
| Display Size | 1.78 inch |
| Resolution | 368*448 |
| Driver IC | CO5300/CST820 |
| Interface | MIPI |
| Viewing Angle | IPS |
| Luminance | 350cd/m2 |
| Outline Dimension | 34.6(V)*43.5(W)*3.67(T)mm |
| Active Area | 28.7*34.94mm |

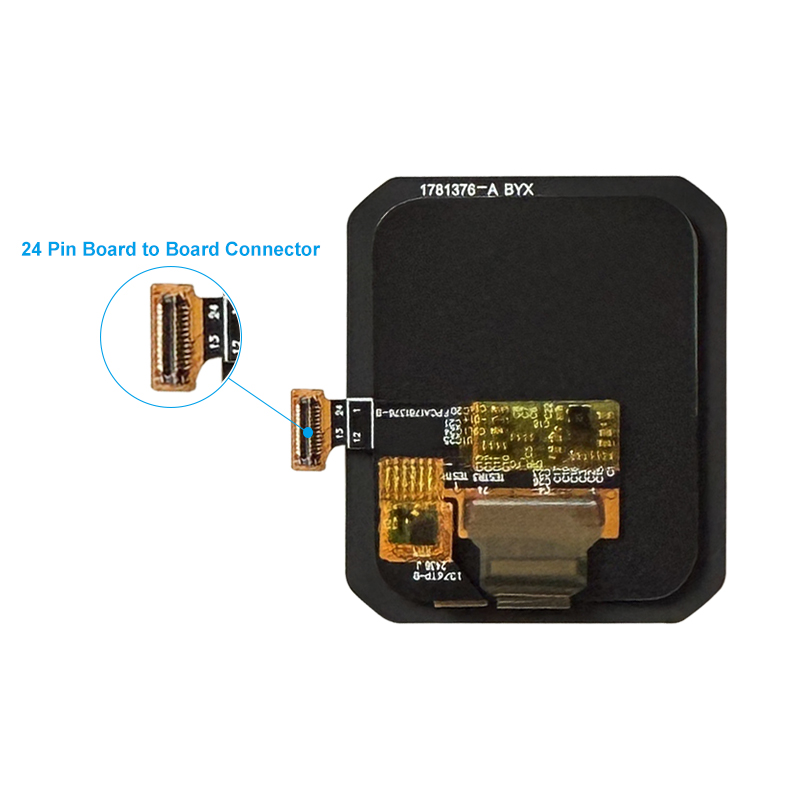

| FPC Connector | 24 Pin Board to Board Connector |
| Touch Panel | With touch & cover panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | Support |

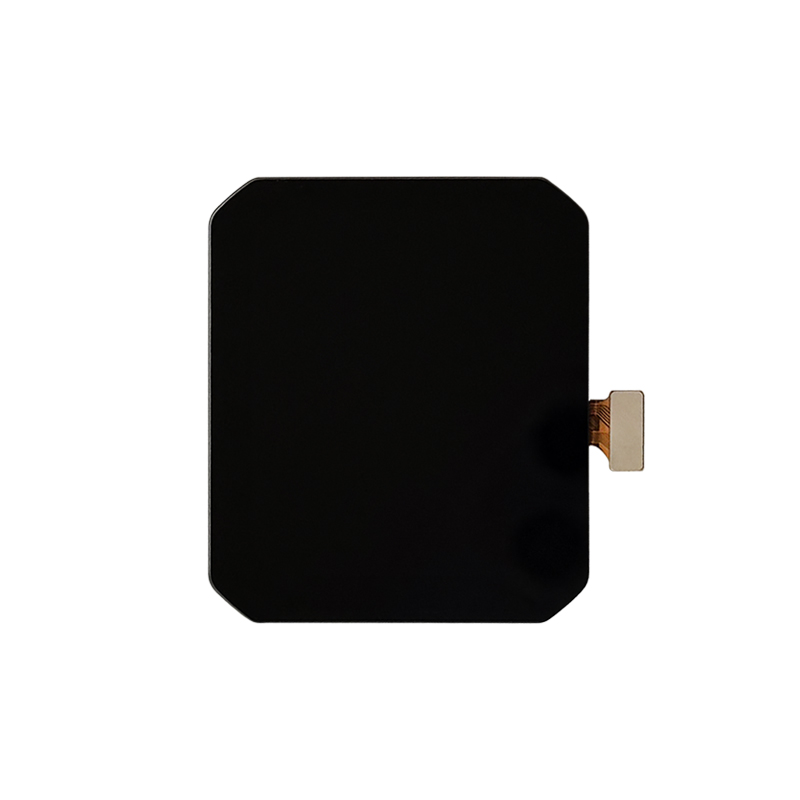

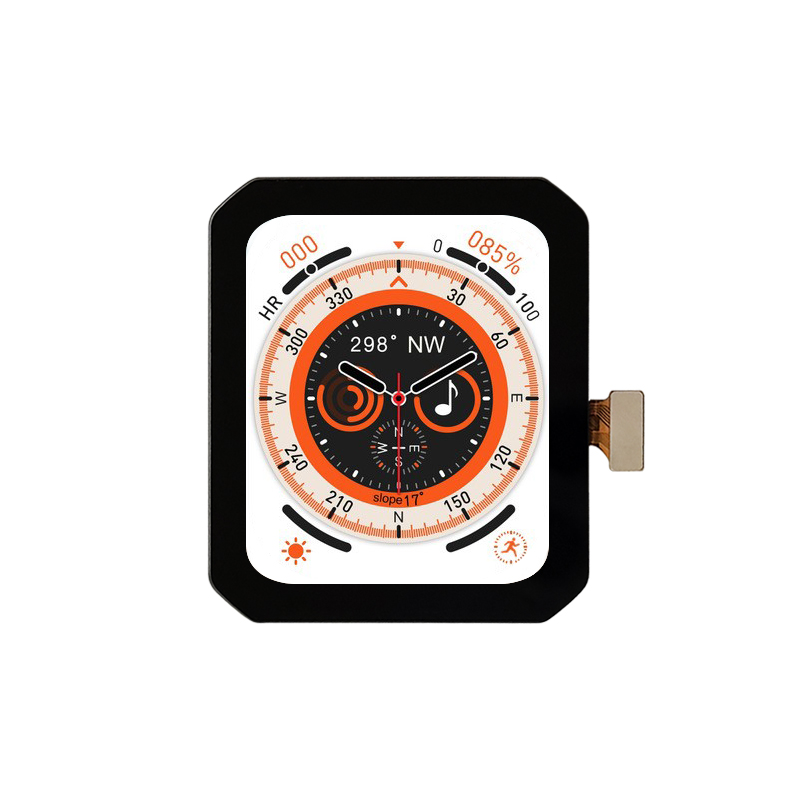

Product Pictures

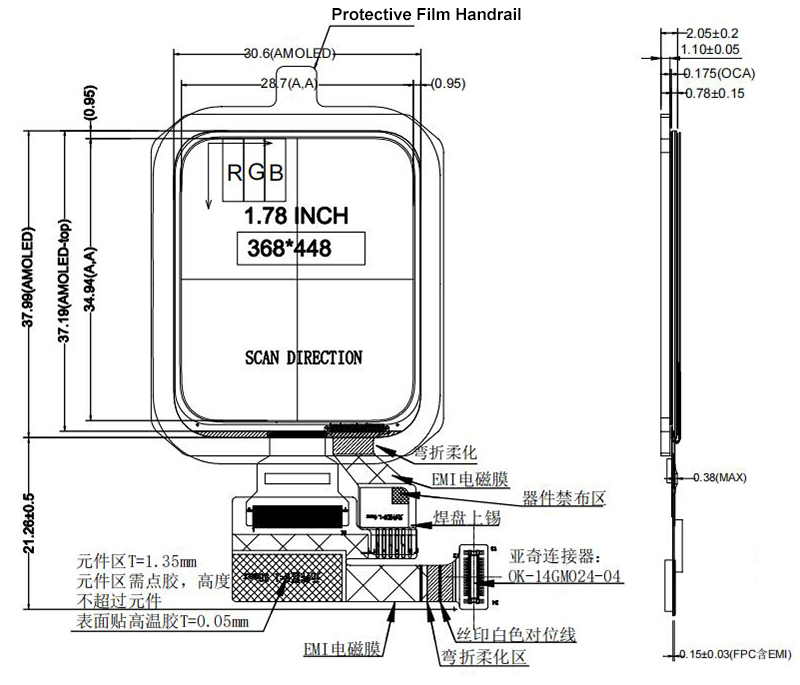

Drawing

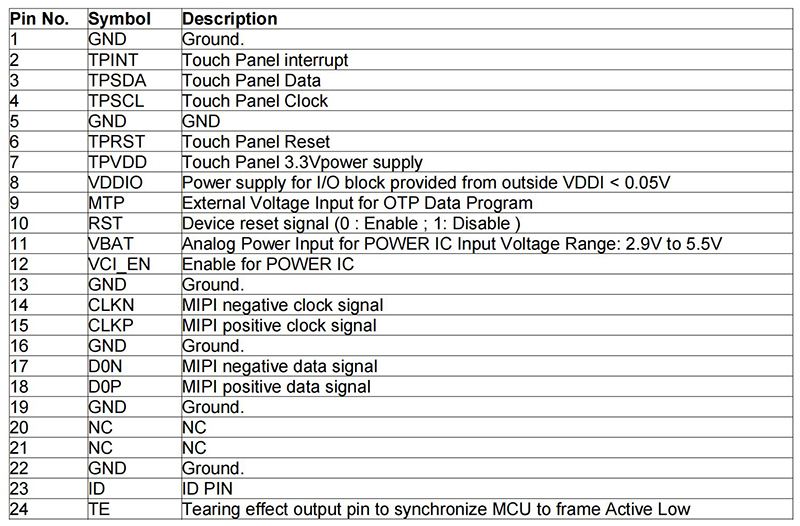

Connector
Customization
