Product Parameters
1.73 Inch 466*466 MIPI Smart Watch Round AMOLED Touch Screen 1.7inch 24Pin Circular Color OLED Display Module with Cover Glass
| Display Type | AMOLED Display |
| Model No. | TT173AMC80C |
| Display Size | 1.73 inch |
| Resolution | 466*466 |
| Driver IC | CO5300/CST820 |
| Interface | MIPI |
| Viewing Angle | IPS |
| Luminance | 500cd/m2 |
| Outline Dimension | 46.35(V)*46.35(W)*1.56(T)mm |
| Active Area | 43.76mm Diameter |
| FPC Connector | 24 Pin Board to Board Connector |
| Touch Panel | With touch & cover panel,support customization |
| Testing Board | Optional |
| Datasheet & Initial Code | Please contact service |
| Customization | Support |

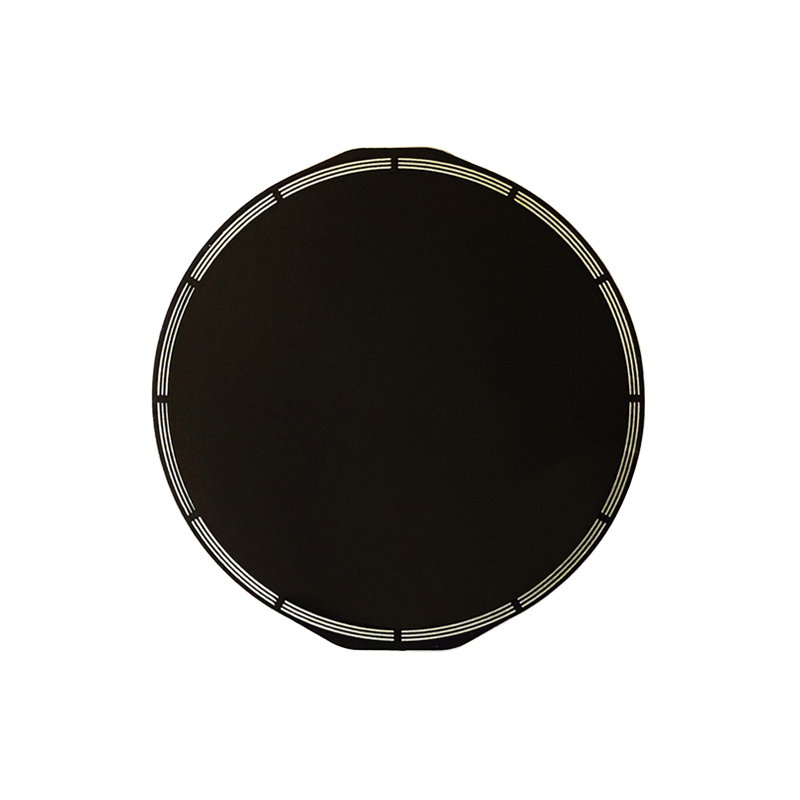

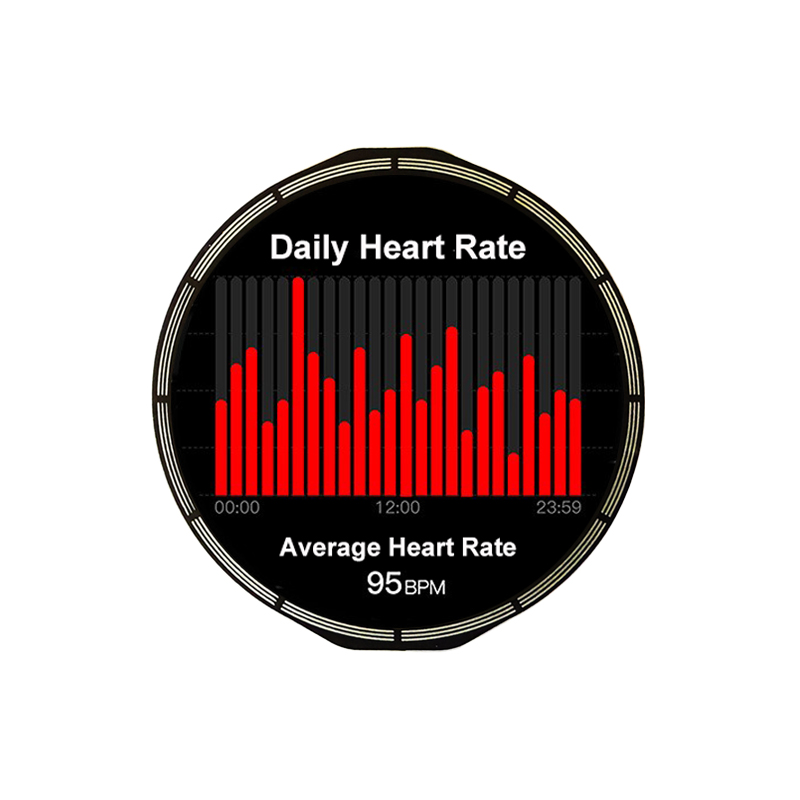

Product Pictures

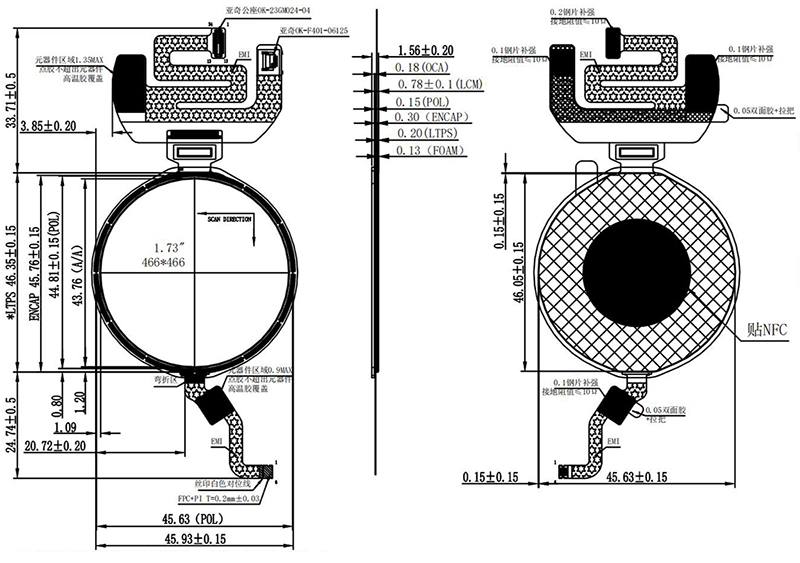

Drawing

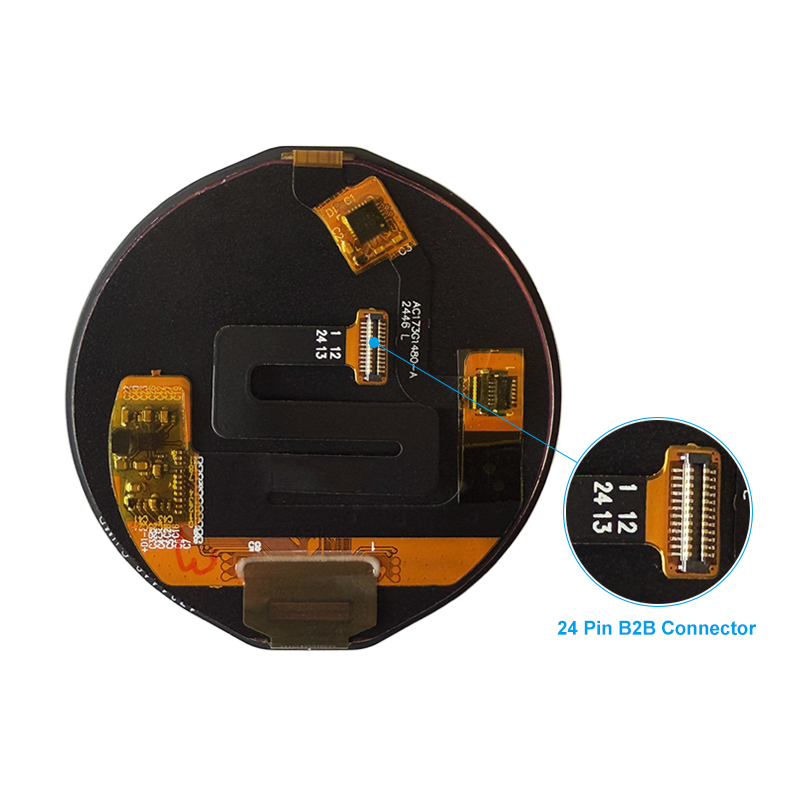

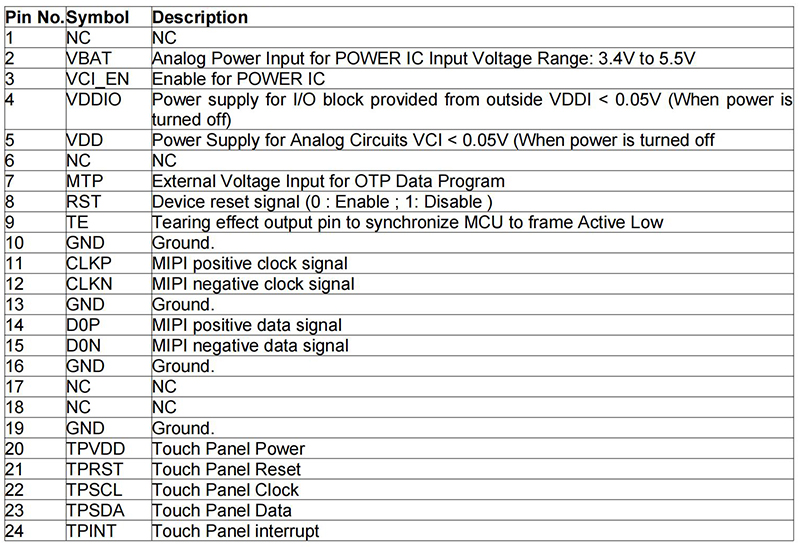

Connector
Customization
